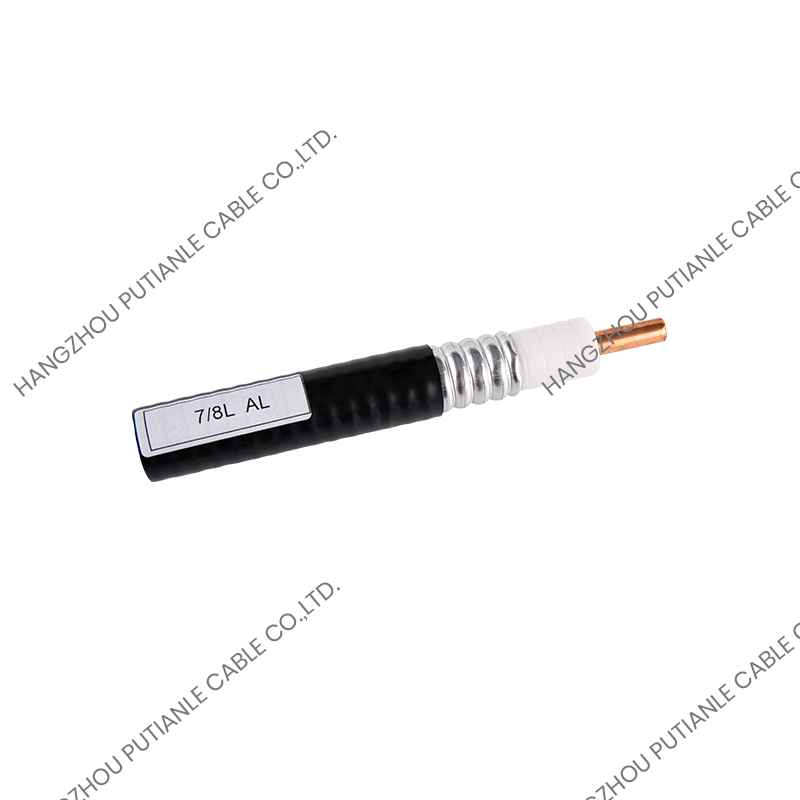

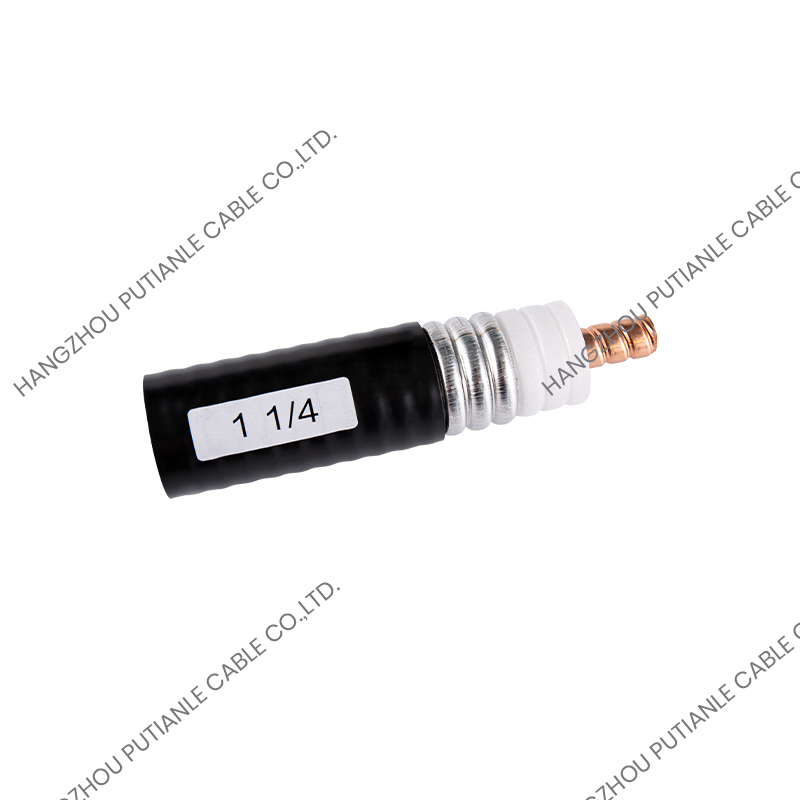

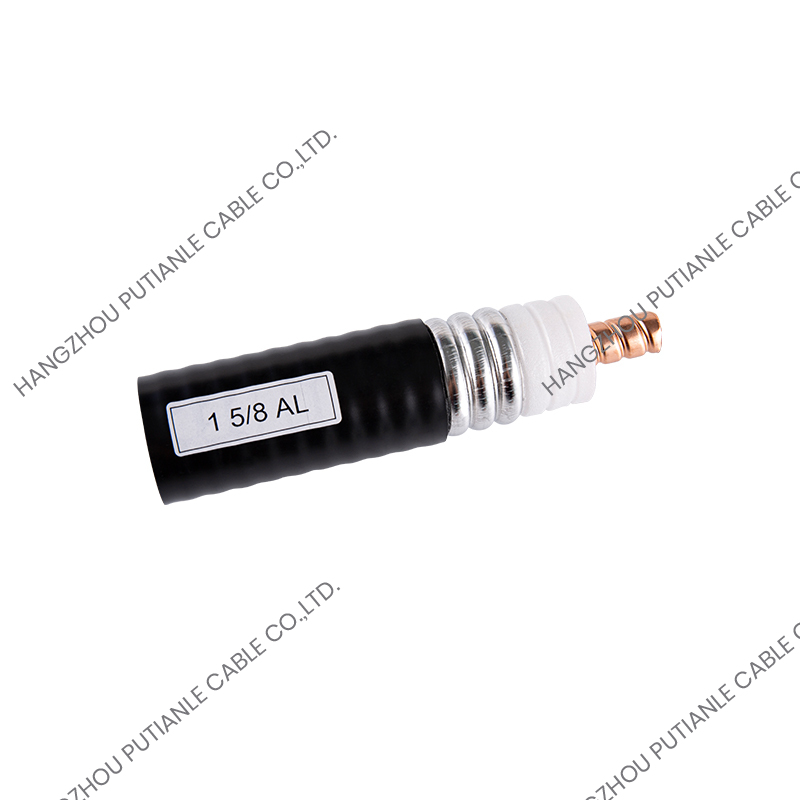

50 Ohm Rf Series Corrugated Aluminum Tube Coaxial Cable Suppliers

The electrical performance of 50 Ohm Rf Series Corrugated Aluminum Tube Coaxial Cable is shown in terms of impedance stability and shielding performance

The 50 Ohm RF Series Corrugated Aluminum Tube Coaxial Cable from Hangzhou Putianle Cable Co., Ltd. is engineered to deliver exceptional electrical performance, particularly in terms of impedance stability and shielding performance. These characteristics are crucial for applications involving high-frequency signal transmission, where maintaining signal integrity is paramount.

Impedance stability is a fundamental attribute of coaxial cables, particularly for RF applications. The 50 Ohm RF Series utilizes a carefully designed corrugated aluminum tube that ensures consistent impedance throughout its length. The geometry of the cable, including the spacing between the inner conductor and the outer shield, is meticulously calculated to maintain the characteristic impedance of 50 Ohms.

Aluminum, while lighter and less expensive than copper, is utilized effectively in this cable. The electrical properties of aluminum are conducive to high-frequency applications, allowing for low-loss transmission. The corrugated design not only enhances the cable's mechanical strength but also contributes to maintaining impedance consistency across varying frequencies.

The cable is engineered to perform effectively across a wide frequency range, commonly from DC up to several GHz. This broad frequency response is essential for applications such as telecommunications, broadcasting, and radar systems, where signal fidelity at high frequencies is critical. The consistent impedance helps to minimize reflections, which can lead to signal degradation and loss.

A stable impedance ensures low reflective losses, which are detrimental to signal quality. When impedance mismatches occur, a portion of the signal is reflected back toward the source, causing interference and reducing the effective power transmitted through the system. The 50 Ohm RF Series is designed to minimize these mismatches, enhancing overall system efficiency and performance.

Shielding performance is another critical factor in coaxial cables, especially in environments where electromagnetic interference (EMI) is prevalent. The corrugated aluminum design not only provides structural integrity but also enhances the shielding effectiveness of the cable. The aluminum acts as a barrier to external electromagnetic fields, thereby protecting the transmitted signal from interference.

In modern communication systems, maintaining electromagnetic compatibility (EMC) is essential. The 50 Ohm RF Series excels in this aspect due to its effective shielding, which minimizes the risk of crosstalk and other forms of signal interference. This is particularly important in densely populated environments where multiple signals may coexist.

The design of the corrugated aluminum tube also facilitates a robust grounding mechanism. A well-grounded cable can effectively dissipate unwanted noise and interference, further enhancing the overall signal quality. The effective return path provided by the shielding ensures that the signal integrity is maintained even in the presence of external disturbances.

The shielding performance of the cable is complemented by its resistance to environmental factors. The aluminum tube is often treated to enhance its corrosion resistance, ensuring that the shielding remains effective over time, even in harsh conditions. This durability is vital for outdoor applications where exposure to moisture, salt, and other corrosive elements is common.

The impedance stability and shielding performance of the 50 Ohm RF Series make it suitable for a wide range of applications:

The cable is ideal for cellular networks and base stations, where high-frequency signals must be transmitted with minimal loss and interference.

In television and radio broadcasting, maintaining signal integrity is crucial. The cable’s design helps to ensure clear transmission over long distances.

In military and aviation applications, where reliability is critical, the impedance stability and effective shielding of this cable make it a preferred choice.

Many industrial settings require robust and reliable communication systems. The cable’s durability and shielding performance are beneficial in environments with high levels of electrical noise.

The 50 Ohm RF Series Corrugated Aluminum Tube Coaxial Cable from Hangzhou Putianle Cable Co., Ltd. stands out for its exceptional electrical performance characterized by impedance stability and shielding effectiveness. These features are essential for ensuring reliable high-frequency signal transmission across various demanding applicat
